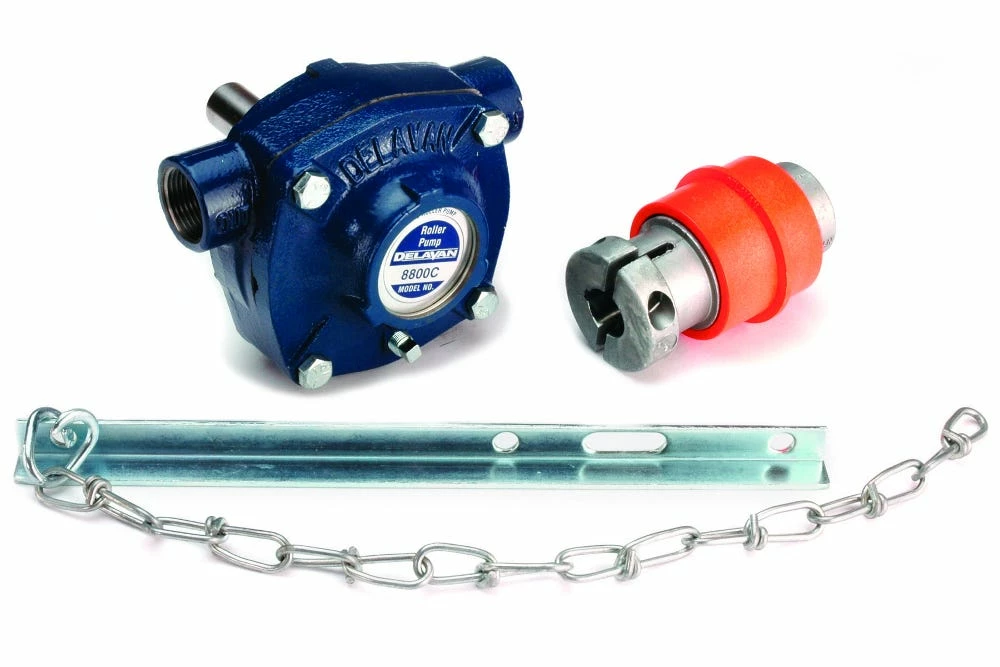

Delavan Pump 8 Roller Pro Kit Cast Iron DPK-8900C/8868 – Pumps

DPK-8900C – Cast Iron

Pump

Type: 8-Roller design

Max Pressure: 300 PSI (21 bar)

Max Recommended Temperature: 140°F (60° C)

Port Size: 1” NPT (female)

Mounting:
Base Mounted: 3⁄8 -18 UNC-2B (2 holes)

PTO: Use torque bar and chain

Shaft:

Size: 15⁄16” solid shaft

Rotation: CCW (standard); CW (optional)

(Shaft rotation is determined when looking at shaft end of pump)

Weight: 14 lbs (30.8 kg)

Materials of Construction

Housing: Cast Iron or Diamond Series™ Stainless Steel

Rollers: 3⁄4” Ultra rollers (standard) Polypropylene (optional)

Shaft Seals: Viton cartridge type lip seals

Seal Ring: Viton

Shaft & Rotor:

Cast Iron: Extra-fine finish 404 SST

Diamond Series™ Stainless Steel: Extra-fine finish 416 SST

Bearings: Permanently-lubricated, heavy-duty sealed bearings
