Delavan Ag Pumps Hydraulic Cylinder 2 x 8 PML2008 112ASAE – Couplings & Fittings

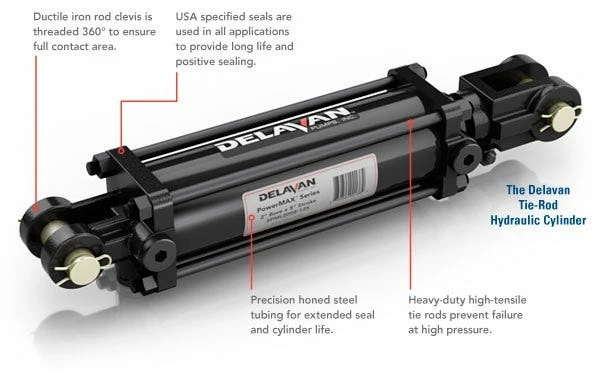

From Agriculture to Automotive and every industry in between, Delavan PowerMax Hydraulic Cylinders are designed and manufactured to meet the most demanding requirements. The PowerMax line was developed because we understand the need for professional performance and durability. All PowerMax Cylinders are hydraulically tested at twice their working pressure.

• Chromed, polished and individually heat-treated shaft provides extended cylinder life.
• Working pressure 2500 PSI and 3000 PSI.
• All cylinders are 100% hydraulically tested up to two times working pressure.
• Series PML – 2500 PSI (5,000 PSI proof pressure).
• Series PMH – 3000 PSI (6,000 PSI proof pressure).
• Pin to Pin retracted length is 20 1/4″, and extended is 28 1/4″.
